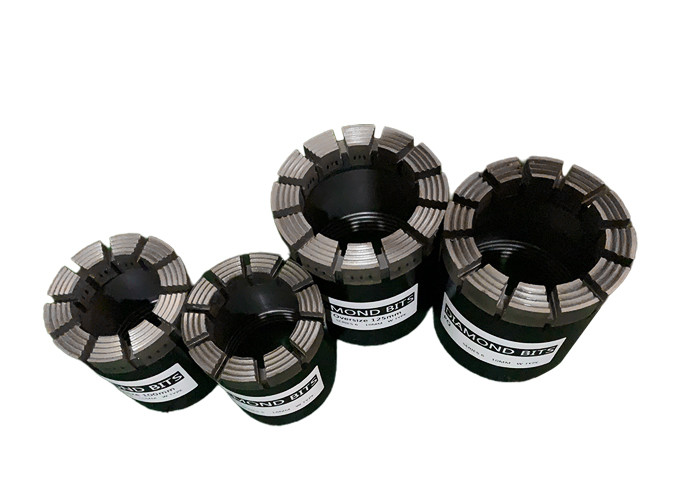

Maximum performance Q Wireline Impregnated Diamond Core Bits for Rock sample
Compared to most core drilling systems,Q systems provide maximum performance,balancing drilling fluid and cuttings management with reliable inner and outertubes.
Impregnated diamond drill bits are designed to perform as grinders, diamond are embedded in an infiltrated or sintered matrix.
The matrix erodes away at the same rate as the diamonds become worn and rounded, thus new sharp diamonds are exposed to continue cutting through the rock.
Matrix Selection Chart:
Q Wireline Impregnated Diamond Core Drill Bit Size Chart
| Size | Outside diameter(mm) | Inside diameter(mm) |
| AQ | 47.75/47.50 | 27.10/26.85 |
| BQ | 59.69/59.44 | 36.52/36.27 |
| BQ3 | 59.69/59.44 | 33.65/33.40 |
| NQ | 75.44/75.19 | 47.75/47.50 |
| NQ2 | 75.44/75.19 | 50.80/50.55 |
| NQ3, NQTT | 75.44/75.19 | 45.21/44.96 |
| HQ | 95.76/95.38 | 63.63/63.38 |
| HQ3, HQTT | 95.76/95.38 | 61.24/60.99 |
| PQ | 122.30/121.80 | 85.09/84.84 |
| PQ3 | 122.30/121.80 | 83.18/82.93 |
We supply A-Gauge impregnated core bit:AQ, AW, AGM;
B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;
N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;
H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;
P-gauge impregnated core drilling bit:PQ, PQ3;
TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;
T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131, T6-146, etc.
Feature:
1. Significantly outperforms the successful Series range in drilling speed and bit life.
2. Protects the diamond from oxidation and surface degradation.
3. Inhibits the premature "pull-out" of the diamond.
4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.
Rock sample:
Company Information:
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes. Our portfolio includes: Consumables used in the mining and construction industries Equipment used in the mining and construction industries Spare parts used for the equipment we sell for the mining and construction industries Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc.)
MIROC® Rock Drilling and Ground Support Tools include:
Diamond bits and Reaming shell
PDC bits and Casing shoes
Drill rod and Drill tools in Q series
Core barrel assembly and accessories.
Diamond tools
Top hammer Rock drilling tools
Down-the-hole (DTH) Bits and hammers
