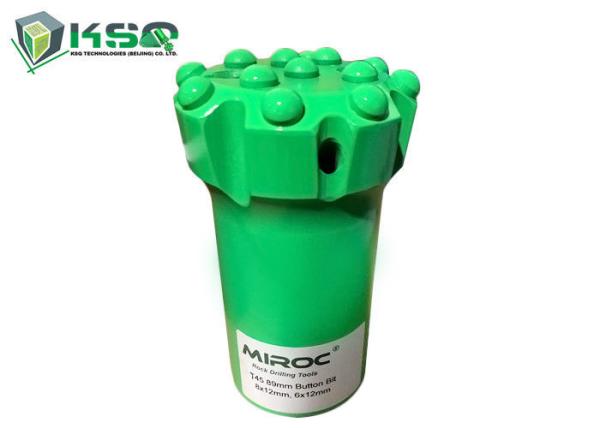

Hard Rock Drill Bits Top Hammer Drill Bits T45 89mm Threaded Drill bit for Underground Mining
Description:
The thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Rock Drill Thread Button Bits is suitable for R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 rock drill rods use. It have many thread. It's widely used for hard rock(f=8~18) drilling use.
Features:
1. These threaded button bits can meet different drilling requirements in all rock formations. We can offer special designs according to customers's requirements for specific work situation.
2. The button bits can transmit intensive impact energy into the rock with the least loss of energy.
3. We select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear,thus the service life of bits will be increased.
Color: Green,Blue or Based on Customer requirements
Specification
| T45 Button bits, normal skirt |
| Diameter | T.C buttons | Flushing hole | Weight |
| mm | inch | Gauge x mm | Front x mm | Side | Front | Kg |
| 76 | 3 | 6x12 | 4x11 | 0 | 2 | 2.39 |
| 76 | 3 | 6x13 | 3x12,1x11 | 0 | 3 | 2.41 |
| 76 | 3 | 8x12 | 4x12 | 0 | 2 | 2.52 |
| 76 | 3 | 8x12 | 4x11,1x11 | 0 | 4 | 2.48 |
| 76 | 3 | 8x12 | 5x11 | 0 | 2 | 2.44 |
| 89 | 31/2 | 8x13 | 4x13 | 0 | 2 | 3.52 |
| 89 | 31/2 | 8x13 | 4x11,1x11 | 1 | 4 | 3.48 |
| 89 | 31/2 | 8x13 | 4x11,2x9 | 1 | 4 | 3.62 |
| 89 | 31/2 | 8x14 | 5x12 | 0 | 2 | 3.68 |
| 89 | 31/2 | 8x13 | 6x12 | 0 | 2 | 3.72 |
| 89 | 31/2 | 9x12 | 6x10 | 1 | 3 | 3.74 |
| 102 | 4 | 8x15 | 4x15 | 0 | 2 | 5.54 |
| 102 | 4 | 8x14 | 4x12,2x12 | 1 | 4 | 5.48 |
| 102 | 4 | 8x14 | 6x12 | 0 | 2 | 4.85 |
| 102 | 4 | 9x13 | 8x13 | 1 | 3 | 5.25 |
| 115 | 41/2 | 8x15 | 4x13,2x13 | 1 | 4 | 6.68 |
| 115 | 41/2 | 8x15 | 6x15 | 1 | 2 | 6.84 |
| 115 | 41/2 | 8x15 | 7x14 | 1 | 2 | 6.92 |
| 115 | 41/2 | 9x14 | 8x14 | 1 | 2 | 6.89 |
| 127 | 5 | 8x16 | 7x14 | 1 | 2 | 9.72 |
| 127 | 5 | 9x16 | 8x14 | 1 | 3 | 10.14 |
drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | poranterä | borr | boret | jesie | druil giotán
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available at any time
c. Free replacement will be provided once the failure confirmed caused by our product quality
Company Information:
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

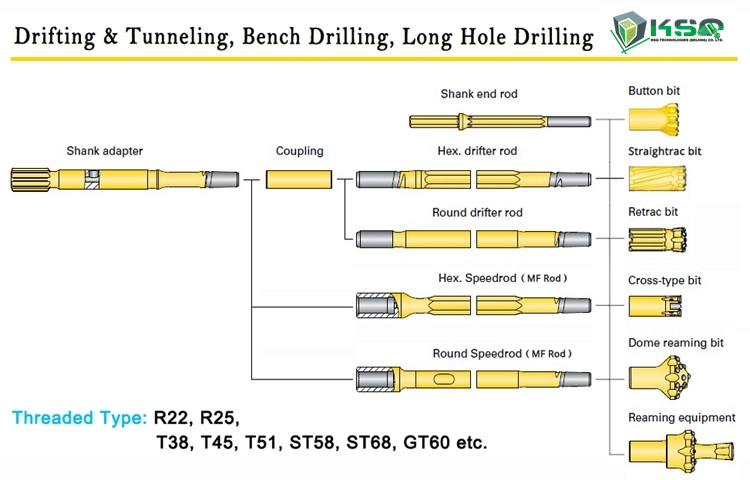

MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
