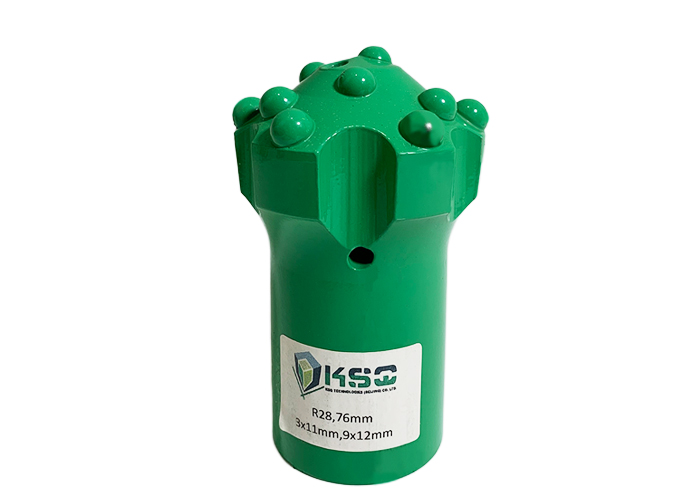

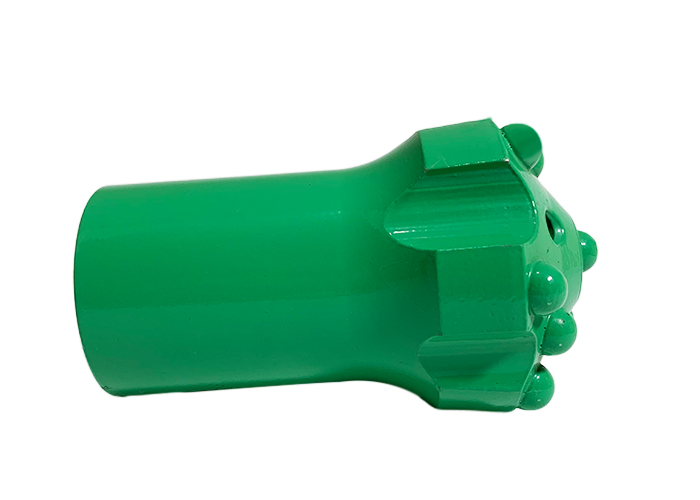

Reaming Drill Bit R28 76mm Spherical Button Drill Bit with Domed Face Top
Our thread button bits are made with high quality of best quality alloy steel bar and tungsten carbides with superior wear resistance and impact toughness superior, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Features:
Thread connection: R25, R28, R32, R38, T38, T45, T51, ST58, GT60 and ST68.
Carbide profile: Spherical, ballistic and parabolic.
Bit Faces: flat, concave, convex and drop-center, uniface.
Bits Diameters: 33mm-127mm
Bit body: standard and retrac

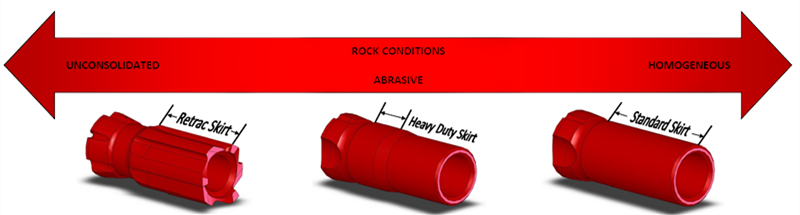

Skirt selection:
Standard Skirt
Typically smaller than the head diameter to avoid cuttings and the rock wall, therefore optimizing hole flushing.
Heavy Duty Skirt
A variation on the standard skirt design, available for very abrasive conditions. The heavy duty skirt has added wear material towards the front of the skirt to protect the bit against abrasive cuttings.
Retrac Skirt
Designed to improve hole straightness, as well as to assist in retrieval of the drill string. The splines will also improve the hole flushing characteristics of the bit due to the chip ways between the splines
Products Parameters:
| Product Name: | Thread Button Drill Bit |
| Diameter: | 76mm |
| Button Size: | Front 3*11mm Gauge 9*12mm |
| Thread: | R28 |
| Flushing Hole: | 2 Front and 1 Side |
| Application: | Button drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling |
| Weight: | 2 kg |
| Button Type: | Spherical |
| Body Type: | Standard Skirt |
| Face Type: | Dome Face-Reaming Bit |
| Material: | Alloy steel bar 45CrNiMoV and tungsten carbide tips YK05 |
| MOQ: | No requirement for testing and trial order |
| We can design and manufature according to your requirment of diameter, number air holes and carbide button shape |
Product Advantage:
1. Mature heat treatment technology ensure high quality of bits
2. work reliable and very cost-effective
3. High grade tungsten carbide inserts
Specification of other Retrac Button Bits:
| Type | Dimensions | | Flushing holes | | Buttons(mm) | | Angle |
| | mm | in | Front No Size | Gauge No Size | Front No Size | Gauge No Size | |
| Standard | 89 | 3.5 | 2x12 | 2x7 | 6x12 | 8x14 | 35° |
| Standard | 102 | 4 | 2x14 | - | 6x13 | 8x14 | 35° |
| Flat | 115 | 4.5 | 4x13 | - | 6x14 | 8x16 | 35° |
| Drop Center | 89 | 3.5 | 4x10 | - | 6x12 | 8x14 | 35° |
| Drop Center | 102 | 4 | 4x11 | - | 6x13 | 8x14 | 35° |
| Drop Center | 115 | 4.5 | 4x13 | - | 6x14 | 8x16 | 35° |
| Standard | 127 | 5 | 3x13 | - | 10x14 | 9x16 | 35° |
| Drop Center | 127 | 5 | 3x13 | - | 9x14 | 9x14 | 35° |
| Retract | 127 | 5 | 3x13 | - | 9x14 | 9x16 | 35° |
| Flat+retract | 89 | 3.5 | 2x11 | 2x8 | 6x12 | 8x14 | 35° |
| Flat+retract | 102 | 4 | 4x11 | - | 6x13 | 8x14 | 35° |
| Flat+retract | 115 | 4.5 | 4x13 | - | 6x14 | 8x16 | 35° |
| Drop+retract | 89 | 3.5 | 4x10 | - | 6x12 | 8x14 | 35° |
| Drop+retract | 102 | 4 | 4x11 | - | 6x13 | 8x14 | 35° |
| Drop+retract | 115 | 4.5 | 4x13 | - | 6x14 | 8x16 | 35° |
| Drop+retract | 127 | 5 | 3x13 | - | 9x14 | 9x14 | 35° |
| Reaming tools | 152 | 6 | 5x10 | 2x10 | 2x14 | 20x14 | 35° |
