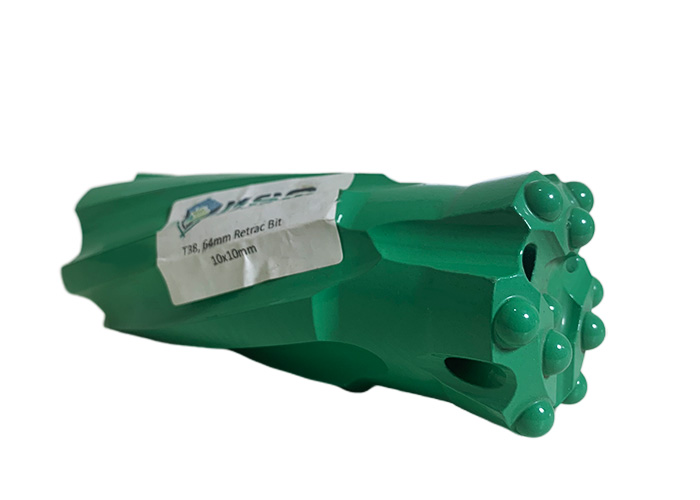

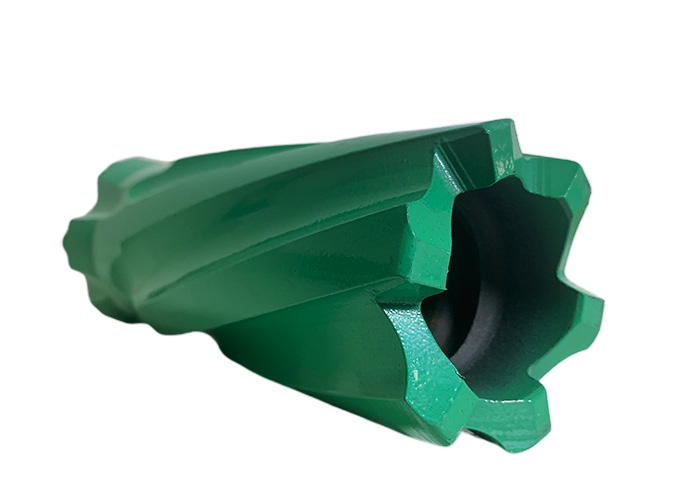

Special Energy Saving Retrac T38 64mm Button Drill Bit With Heat Treatment Process
Product Description:
The Retrac Bits are widely applicable to mining industry, tunneling and underground engineering, open pit, construction drill, blast industry, civil engineering operations,
road, gas line, pipe and trench projects, quarry work, rock anchoring and ground stabilization projects, water well industry, etc,.
This type design can get better hole deviation control while drilling, it can get bit back easily while the bit is jammed during drilling.
• Recommended for eliminating hole deviation
• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock
Retractable rock drill button bit suitable for small hole range
Retractable rock drill button bit widely used in Dimensional Stone Quarrying Industry
Retractable rock drill button bit widely used in Underground Mining Industry
| Product Name: | Thread Button bits | | Description: | Thread Button bits
Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas. | | Material: | Alloy steel bar and tungsten carbide bit | | MOQ: | No MOQ required for testing and trial order | | Body Type | Normal type and retract type | | Thread type | R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60 | | Diameter | 32mm-152mm | | Button bit shape | Spherical and Ballistic | | Face shape | Flat shape and Drop-center shape | |
Specification of other Retrac Button Bits:
| T38/45 Thread Button Bit (FOR REFERANCE, more details, please contact with us) |
| Diameter (mm) | No. of buttons | Buttons x button diameter
(Gauge, Centre) | Buttons angle °
(Gauge, Front) | Flushing hole
(Side, Centre) | Weight approx (kg) |
| 70 | 12 | 8x11, 4x11 | 40 | -, 2 | 2.2 |
| 70 | 11 | 6x12.7, 5x10 | 35 | 1, 2 | 2.2 |
| 70 | 10 | 6x11, 3x11,1x9 | 35 | -, 3 | 2 |
| 70 | 10 | 6x11, 3x11,1x9 | 35 | -, 3 | 2.1 |
| 76 | 12 | 8x11, 4x11 | 40 | -, 2 | 2.2 |
| 76 | 12 | 8x11, 4x11 | 40 | -, 2 | 2.8 |
| 76 | 11 | 6x12.7, 5x11 | 35 | 2, 1 | 2.6 |
| 76 | 13 | 8x12.7, 5x11 | 35 | 1, 2 | 2.4 |
| 76 | 13 | 8x12.7, 5x11 | 35 | 1, 2 | 2.7 |
| 76 | 10 | 6x12.7, 3x11,1x11 | 35 | 1, 2 | 2.6 |
| 76 | 13 | 8x11, 4x11,1x11 | 35 | 1, 4 | 3.2 |
| 76 | 13 | 8x12.7, 4x11,1x11 | 35 | -, 4 | 2.4 |
| 76 | 13 | 8x12.7, 4x11,1x11 | 35 | -, 4 | 3 |
| 89 | 12 | 8x12.7, 4x12.7 | 40 | -, 2 | 3.3 |
| 89 | 14 | 8x12.7, 6x11 | 35 | 1, 1 | 3.7 |
| 89 | 12 | 8x12.7, 4x12.7 | 40 | -, 2 | 5 |
| 89 | 14 | 8x12.7, 6x12.7 | 35 | 1, 2 | 4.7 |
| 89 | 11 | 6x12.7, 3x11,2x11 | 35 | 1, 3 | 3.5 |
| 89 | 14 | 8x11, 4x11,2x9 | 35 | 1, 4 | 4.7 |
| 89 | 13 | 8x12.7, 4x11,1x11 | 35 | -, 4 | 3 |
| 89 | 13 | 8x12.7, 4x11,1x11 | 35 | -, 4 | 4.2 |
| 102 | 12 | 8x14.5, 4x14.5 | 40 | -, 2 | 4.4 |
| 102 | 12 | 8x14.5, 4x14.5 | 40 | -, 2 | 6.7 |
| 102 | 14 | 8x15.8, 6x12.7 | 35 | 1, 2 | 3.7 |
| 102 | 11 | 6x14.5, 3x12.7,2x12.7 | 35 | 1, 3 | 3.9 |
| 102 | 14 | 8x12.7, 4x12.7,2x12.7 | 35 | 1, 4 | 6.9 |
| 102 | 13 | 8x14.5, 4x12.7,1x12.7 | 35 | -, 4 | 5.3 |
| 115 | 18 | 10x12.7, 8x12.7 | 35 | -, 2 | 5.4 |
| 115 | 14 | 8x14.5, 4x12.7,2x12,7 | 35 | 1, 4 | 5 |
| 127 | 19 | 18x12.7, 1x12.7 | 35 | 1, 3 | 5.3 |
| 152 | 20 | 18x14.5, 2x14.5 | 35 | 1, 3 | 9.9 |
